Roller gear cam drive & Hirth coupling

90°index table MDX

Quick　90°indexing　0.5 sec.　|　Accurate　Index accuracy　± 5 arc sec.

90° index table MDX

Durable　 1 million rotation No adjustment

A large number of achievements for transmission case machining

90° index table MDX jig

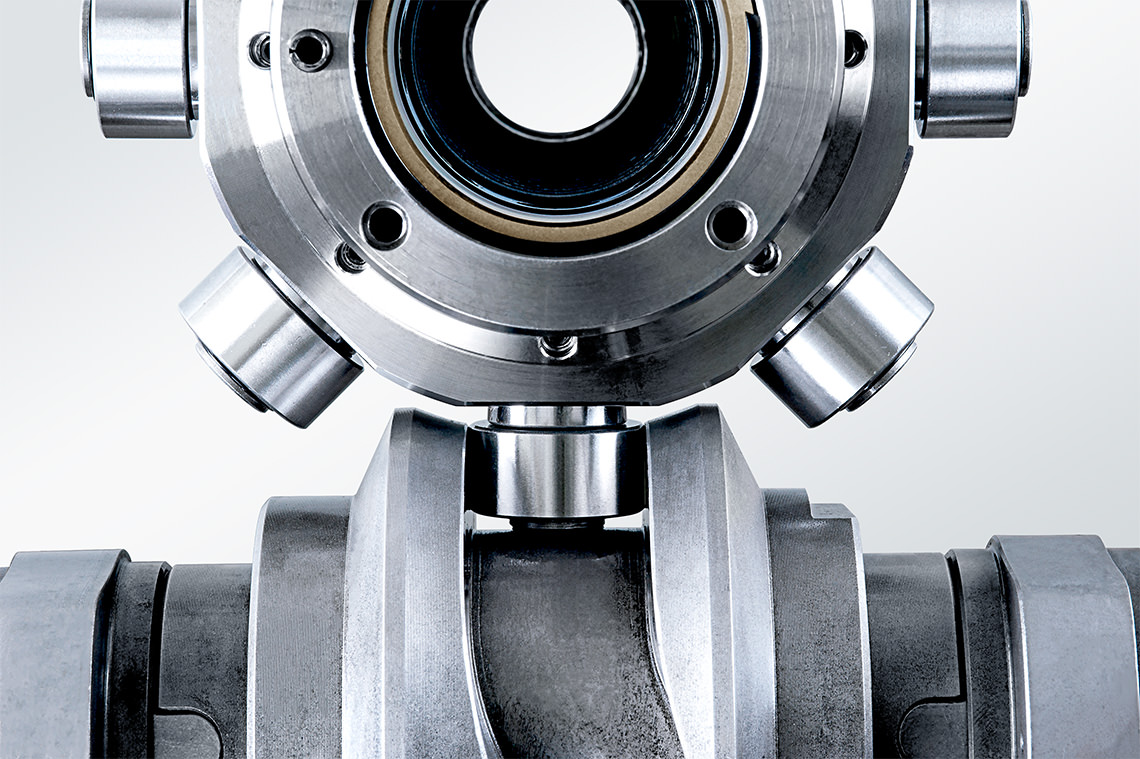

Roller gear cam drive with an excellent indexing motion characteristic

90° index table MDX gear

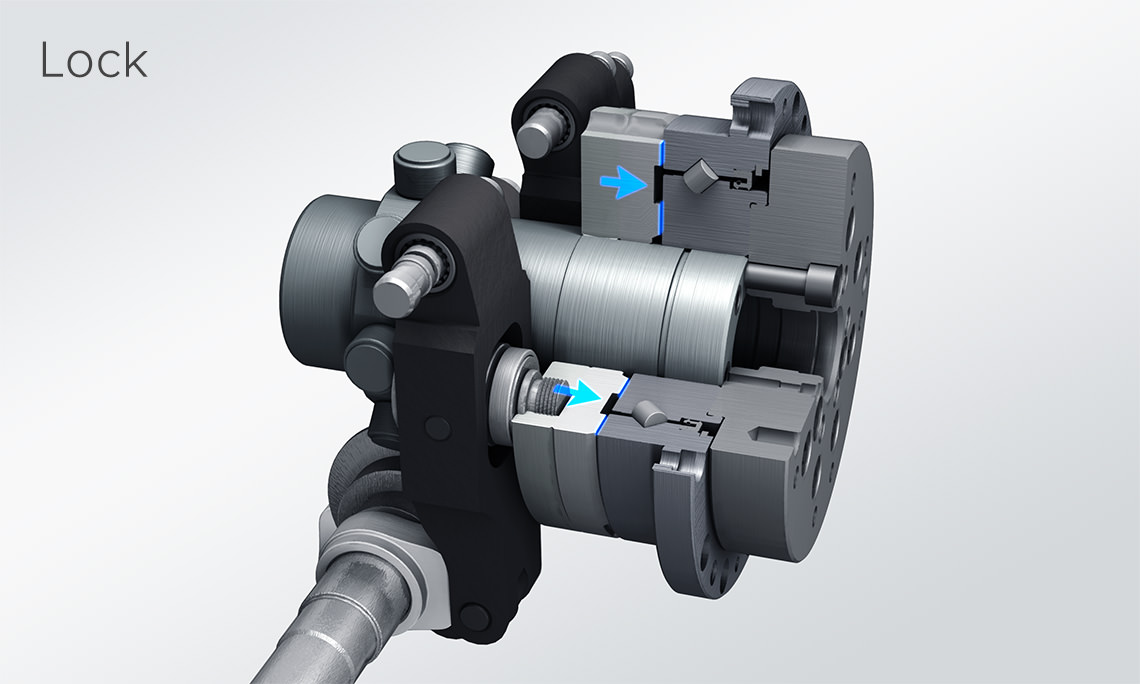

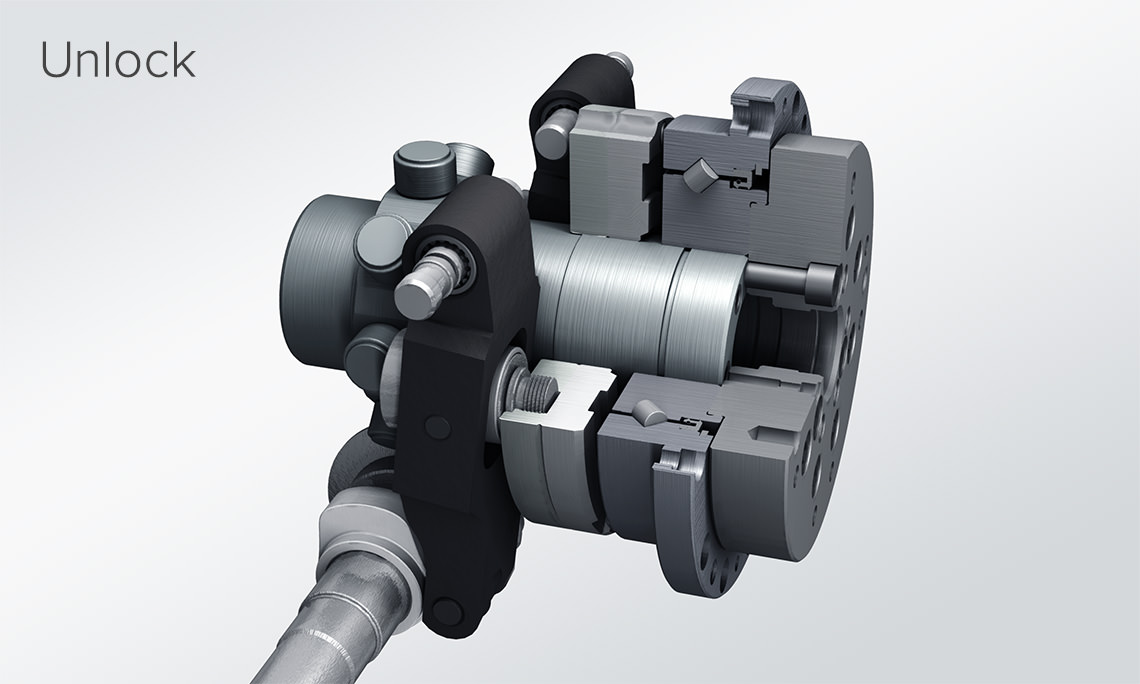

Locking with 3-piece hirth coupling

  • slide
  • slide

Optimum cam curve makes the speed and durability

Roller gear cam drive provides smooth acceleration and deceleration movement according to the machine characteristic by adapting a cam curve.

Roller gear curve

In case of worm gear

In case of worm gear drive, the worm wheel rotation angle is
represented by a rectilinear velocity-diagram as shown in the sketch below, also worm gear drive needs time for braking.
To secure smooth acceleration and deceleration (start/stop),
an expensive servo motor (NC additional axis control) must be required.

Worm gear curve
90° index table MDX
Model   Catalog
MDX Features PDF
MDX / MDS Specifications of index table & support table PDF
EDX Controller （option) PDF
MDX Allowable workpiece inertia moment PDF
MDX Dimensions PDF
MDS Dimensions PDF
MDX / MDS Practical example PDF
90°index table & support table　Catalog All pages
